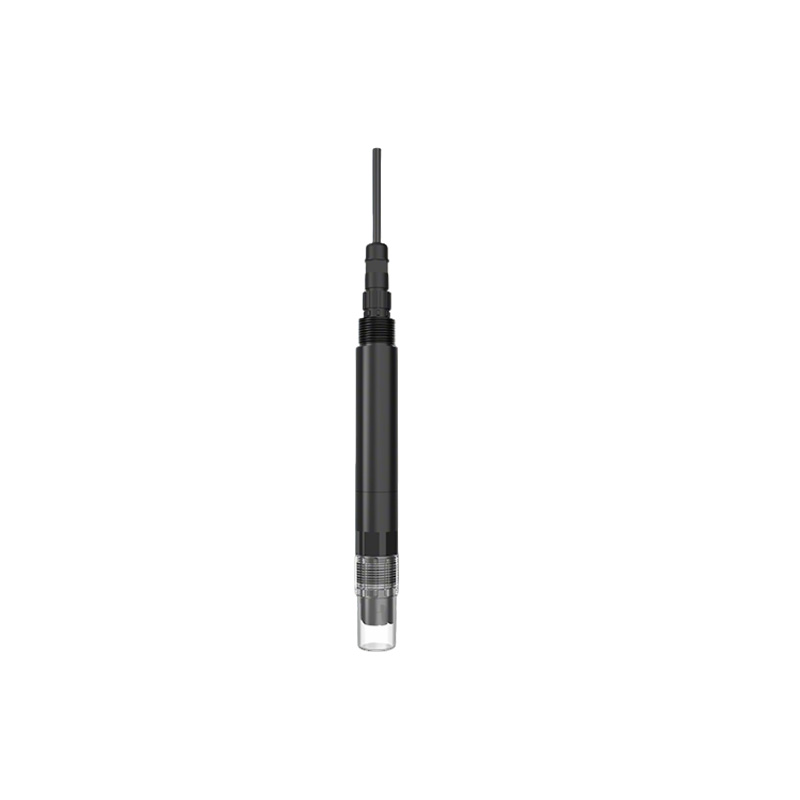

LoRaWAN Water Quality CI- Ion Sensor with Automatic Temperature Compensation
xiamen ZONEWU This is a power-saving LoRaWAN water quality CI- chloride ion sensor, which belongs to wireless networking devices. It can adjust data based on temperature by itself, not afraid of light interference, and can transmit data over long distances using LoRaWAN protocol. It can measure data in real time and send it out immediately, making it particularly suitable for long-term monitoring of water quality
Product Model :
LW115-CI-Power Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
150gLoRaWAN Water Quality CI- Ion Sensor with Automatic
Temperature Compensation
xiamen ZoneWu LoRaWAN Water Quality CI- Ion Sensor can wirelessly measure the amount of chloride ions in water using LoRaWAN.
xiamen ZoneWu LoRaWAN water Quality CI- Ion Sensor Features:
This sensor can automatically calibrate the measurement data according to temperature changes, regardless of whether it is hot or cold, and the measured data is more reliable
With its ability to automatically compensate for temperature, it is not worried about environmental changes and can function stably in different environments
Compared to devices without this function, it measures ion concentration more accurately and has significantly higher precision
It is particularly convenient to connect with LoRaWAN collectors, just plug in the aviation plug, the connection is tight and not loose, and there is no problem with signal transmission
Once connected, wireless communication is sufficient without the need for wired connections. Data transmission is lightning fast, convenient, and user-friendly
It can detect and analyze unqualified industrial wastewater hydration, whether surface water has dried up, the safety of drinking water, the quality of seawater, and how to control ion concentration in industrial production
Product Parameters
| Power Supply | 12/24VDC |
| Weight | 150g |
| Operating Temperature | 0~40℃ |
| Measuring Range |
0-100mg/L Ionic sensors are more susceptible to interference from other ions in the water and can easily cause membrane head failure. Please purchase with caution ! |
| Measurement Error | ±5%FS（25℃） |
| Resolution Ratio | 0.01mg/L |
| Temperature measurement range |
0~50℃,Resolution Ratio:0.1℃ (When manually compensating for temperature, it is set to 25 ℃ by default.) |
| Probe usage cycle | 3-6 months |
| Pressurization | 0.6Mpa |
|
Transmitter Line length |
Default 5m (other lengths can be customized) |
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
| Mode | OTAA Class A/C |
| Reporting cycle | 5min(Default ) |
|
Communication Protocol Equipment information (Reference) |
LoRaWAN,LoRa TDMA Networking AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3 |
Product Applications
1.Sensitive perception: able to quickly detect changes in chloride ion concentration in water
2.Accurate measurement: It can accurately determine the specific amount of chloride ions.
3.Durable and resistant: The environment changes little, and it can be used for a long time without any problems
4.Quick response: You can quickly provide feedback on the situation of chloride ions.
5.Small in size: easy to install anywhere, just place it wherever you want.
6.Easy to maintain: It is easy to maintain and can save a lot of money on repairs and maintenance.

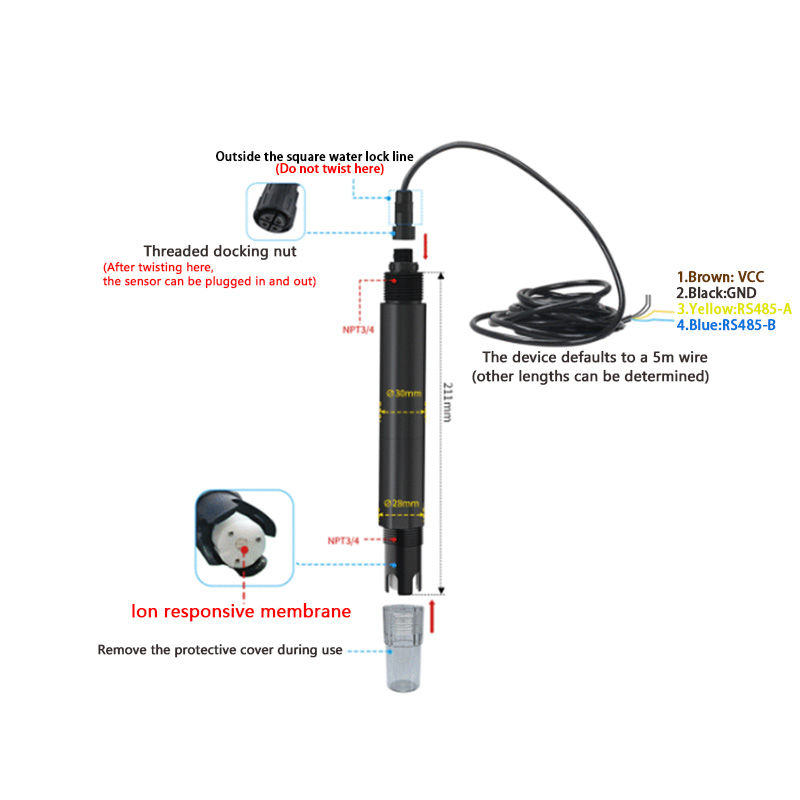

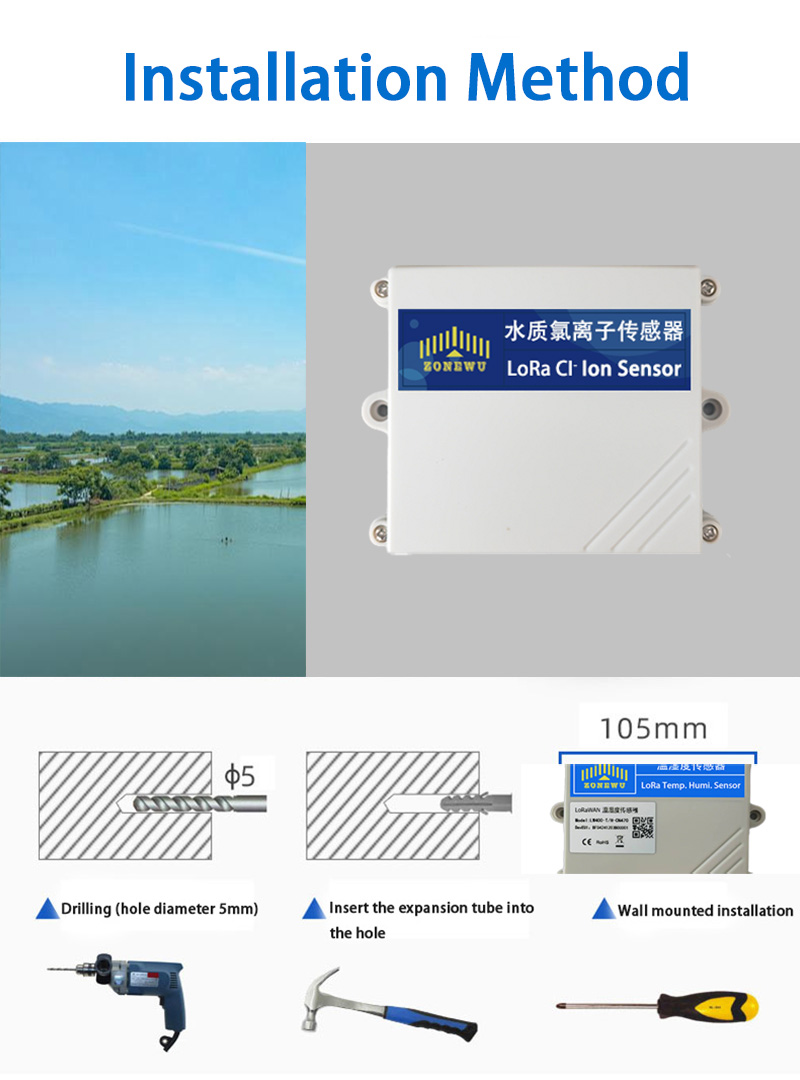

CI- Ion Transmitter Size and Installation
1.Submerged installation: The lead wire of the equipment is passed through
the waterproof pipe, and the 3/4 thread on the top of the equipment is connected
with the 3/4 thread of the waterproof pipe with raw material tape.Make sure that
the top of the equipment and the equipment lines are free of water.
2. Pipe Installation: Connect to the pipe through the 3/4 thread of the device.
Detailed Images
Common knowledge of CI- Ion
Application Scenarios
Aquaculture
Monitor the calcium ion concentration of aquaculture bodies to ensure the health of aquaculture organisms and the stability of water quality.
Seawater Monitoring
Monitoring the concentration of calcium ions in seawater is conducive to marine ecological research and the regulation of seawater aquaculture.

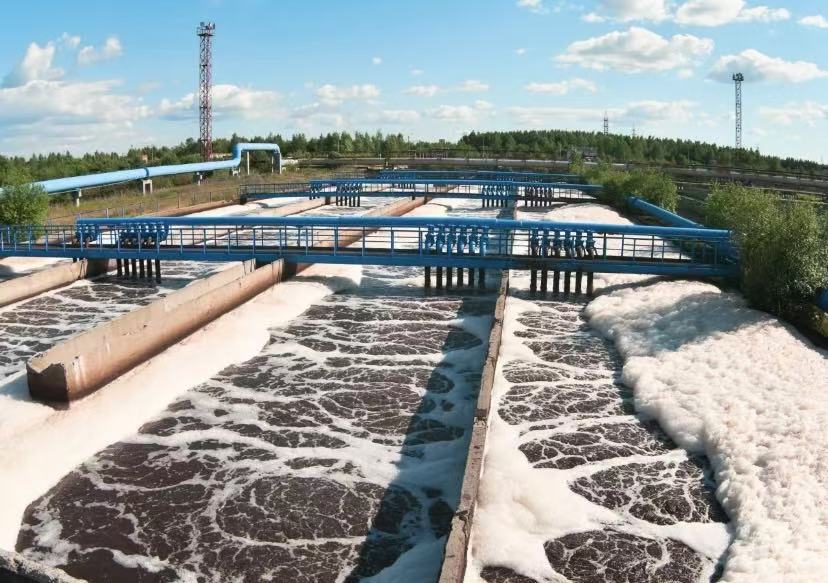

Industrial Wastewater
Monitoring the concentration of calcium ions in industrial wastewater helps with wastewater treatment and achieving compliance with discharge standards.
