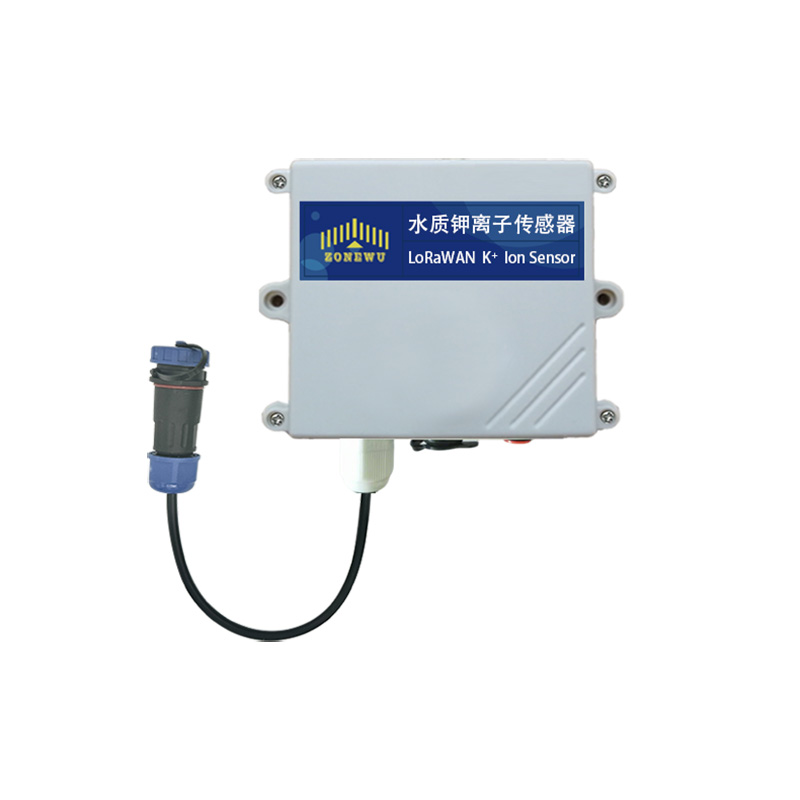

xiamen ZONEWU LoRaWAN Water Quality K+ Potassium Ion Sensor, belonging to wireless IoT devices. It will adjust data according to temperature changes on its own, and is not afraid of light interference. It can transmit data over long distances through the LoRaWAN protocol, collecting monitoring data and sending it in real time, making it particularly suitable for long-term online monitoring of water quality
Product Model :
LW114-K+Power Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
150gLong-term Online LoRaWAN Water Quality K+ Ion Sensor
xiamen ZONEWU LoRaWAN Water Quality K+ Ion sensor can wirelessly measure the amount of potassium ions in water using LoRaWAN.
xiamen ZoneWu LoRaWAN water Quality K+ Ion Sensor Features:
This sensor can automatically calibrate the measurement data according to temperature changes, regardless of whether it is hot or cold, and the measured data is more reliable
Because of its ability to automatically adjust temperature, it is not afraid of the surrounding environment changing, and can work steadily in any environment
Compared to devices without this feature, it measures more accurately and can measure ion concentration more precisely
It is very easy to connect with the LoRaWAN collector, just plug it in with an aviation plug, and the connection is very stable after plugging in, and the signal transmission does not shake
After connecting it, data can be transmitted wirelessly without pulling wires. Information can be transmitted in a blink of an eye, which is convenient and hassle free
It can detect and analyze whether industrial wastewater meets standards, whether surface water is dry or not, whether drinking water can be consumed directly, the quality of seawater, and how to control ion concentration in industrial production
Product Parameters
| Power Supply | 12/24VDC |
| Weight | 150g |
| Operating Temperature | 0~40℃ |
| Measuring Range |
0-100mg/L Ionic sensors are more susceptible to interference from other ions in the water and can easily cause membrane head failure. Please purchase with caution ! |
| Measurement Error | ±5%FS（25℃） |
| Resolution Ratio | 0.01mg/L |
| Temperature measurement range |
0~50℃,Resolution Ratio:0.1℃ (When manually compensating for temperature, it is set to 25 ℃ by default.) |
| Probe usage cycle | 3-6 months |
| Pressurization | 0.6Mpa |
|
Transmitter Line length |
Default 5m (other lengths can be customized) |
| Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
| Mode | OTAA Class A/C |
| Reporting cycle | 5min(Default ) |
|
Communication Protocol Equipment information (Reference) |
LoRaWAN,LoRa TDMA Networking AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3 |
Product Applications
1.Reliable measurement: It can accurately determine how many potassium ions are in water.
2.Super fast response: As soon as the potassium ion concentration changes, it can be detected immediately.
3.Not afraid of disturbance: Other ions and environmental interference have little impact on it.
4.Easy to get started: The detection operation is simple and does not require complicated steps.
5.Stable performance: Even after a long period of use, the measured data remains accurate.
6.Strong compatibility: It can be compatible with any monitoring device and system.

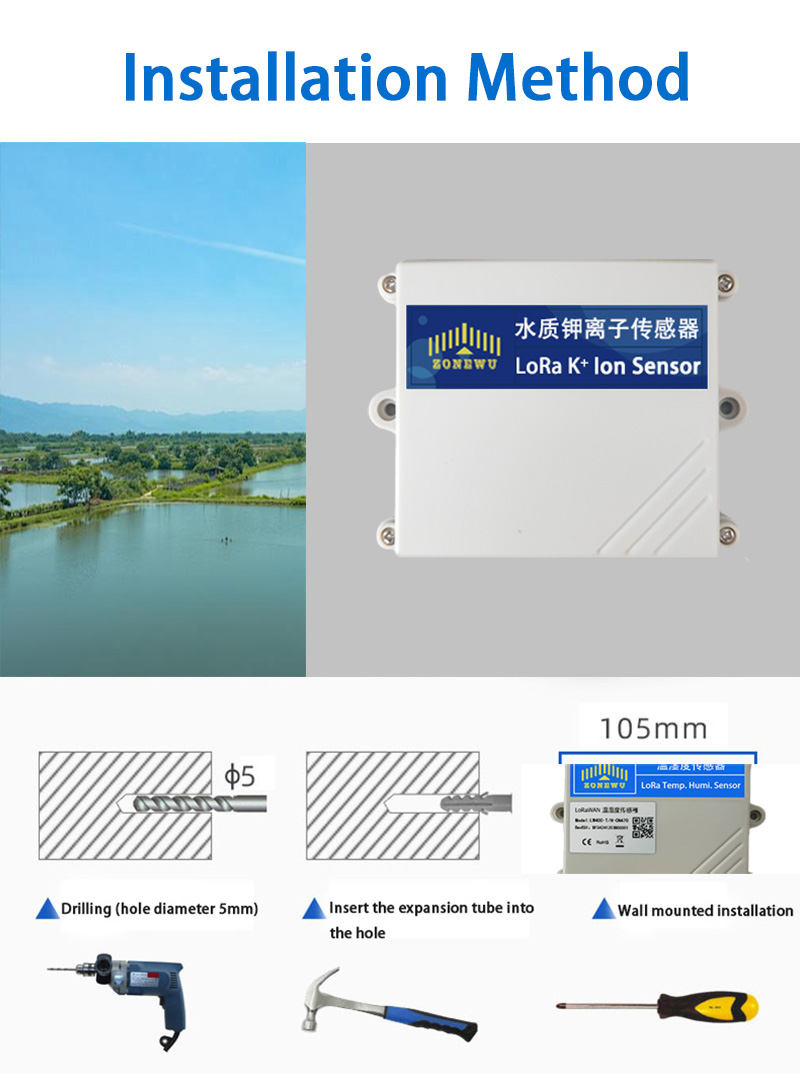

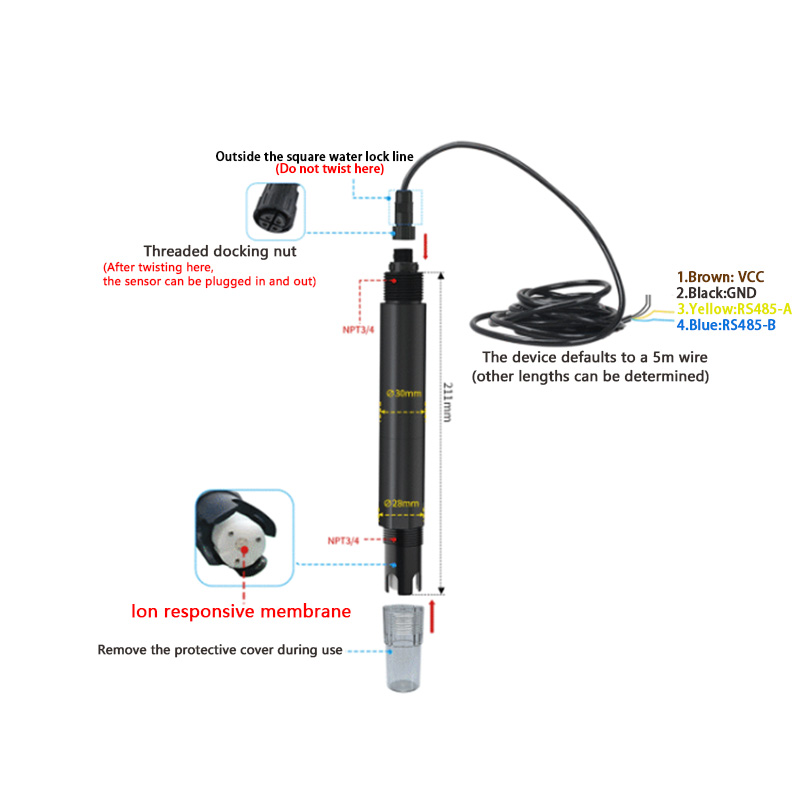

K+ Ion Transmitter Size and Installation
1.Submerged installation: The lead wire of the equipment is passed through
the waterproof pipe, and the 3/4 thread on the top of the equipment is connected
with the 3/4 thread of the waterproof pipe with raw material tape.Make sure that
the top of the equipment and the equipment lines are free of water.
2. Pipe Installation: Connect to the pipe through the 3/4 thread of the device.
Detailed Images
Common knowledge of K+ Ion
Application Scenarios
Aquaculture
Monitor the calcium ion concentration of aquaculture bodies to ensure the health of aquaculture organisms and the stability of water quality.
Seawater Monitoring
Monitoring the concentration of calcium ions in seawater is conducive to marine ecological research and the regulation of seawater aquaculture.

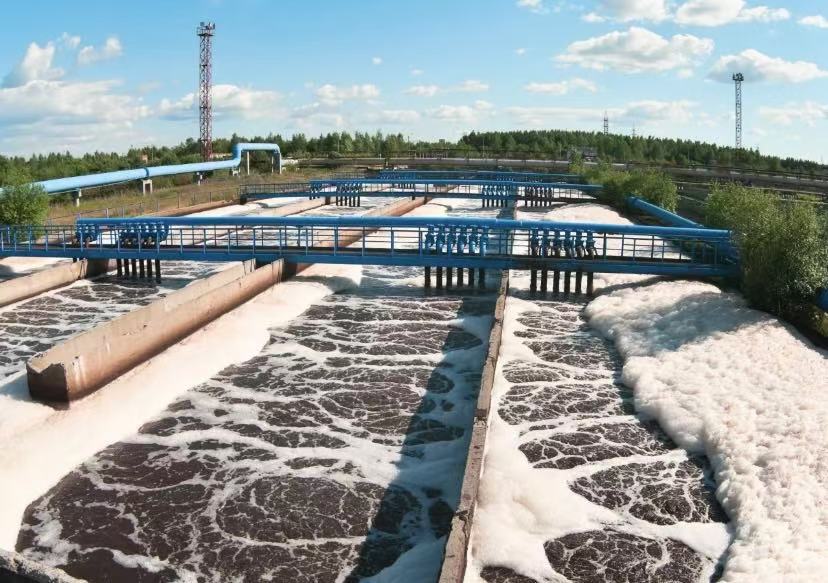

Industrial Wastewater
Monitoring the concentration of calcium ions in industrial wastewater helps with wastewater treatment and achieving compliance with discharge standards.
