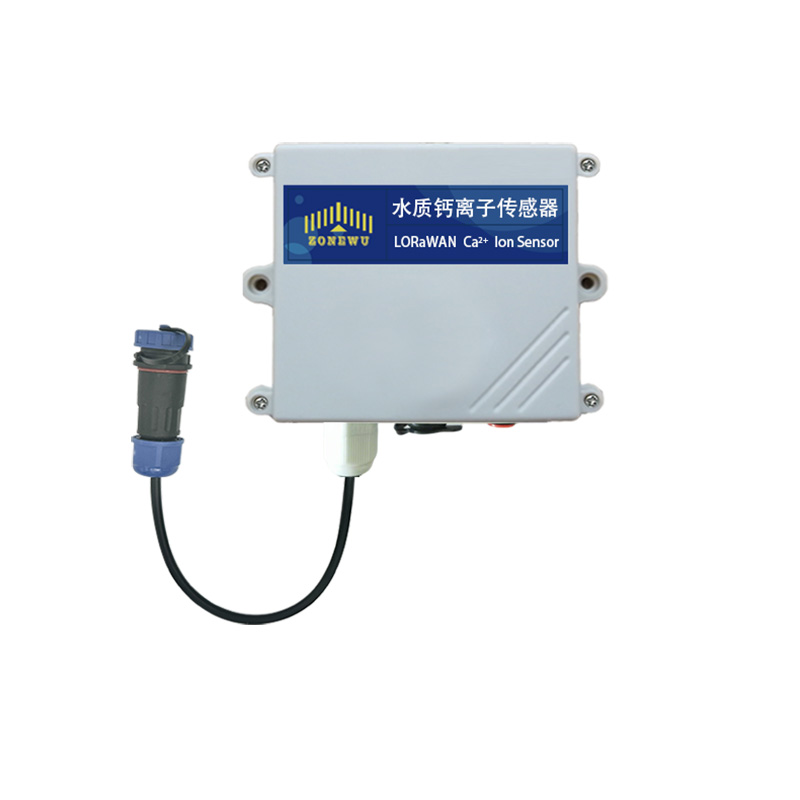

xiamen ZONEWU LoRaWAN Water Quality Ca2+ Ion Sensor is a wireless sensor that can simultaneously handle collection, monitoring, and data transmission, and belongs to LPWAN low-power IoT devices. It uses a filtering algorithm, which is not afraid of external light interference and can adjust data according to temperature, making it particularly suitable for long-term online monitoring in water. And it supports the standard LoRaWAN protocol, which can transmit data over long distances without the need for Ethernet cables, making it very convenient to use.
Product Model :
LW111-CAPower Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
150gLow-power LoRaWAN Water Quality Ca2+ Ion Sensor

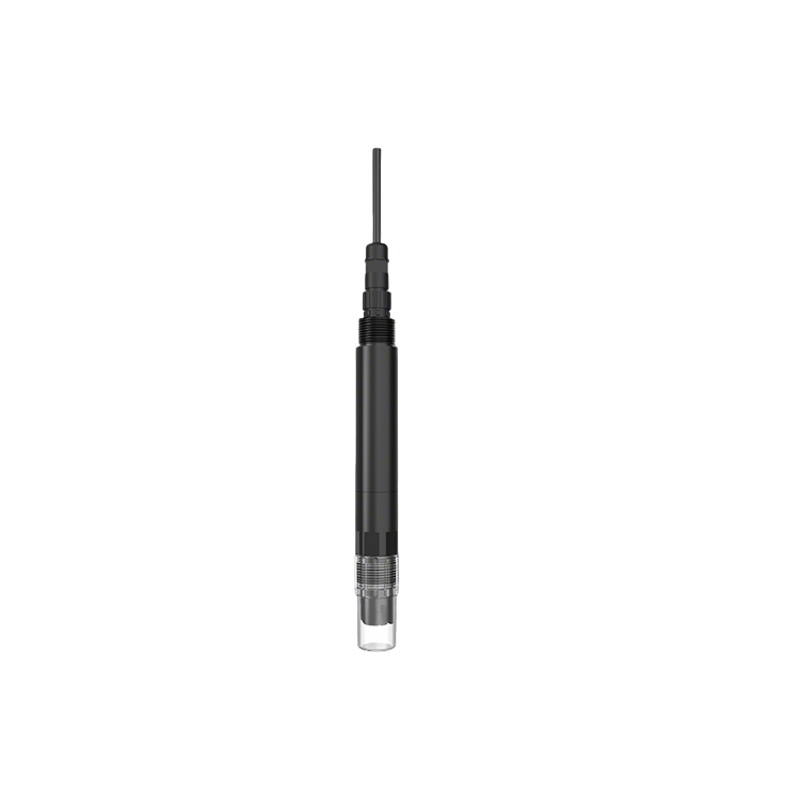

xiamen ZoneWu LoRaWAN Water Quality Ca2+ Calcium ion sensor is a wireless device specifically designed to measure the calcium ion content in water. It can transmit data wirelessly and belongs to the category of low-power Internet of Things. It can remotely determine the calcium content in water without wiring, making it convenient for real-time monitoring of water quality.
xiamen ZoneWu LoRaWAN water Quality Ca2+ Ion Sensor Features:
The LoRaWAN water quality ion sensor function is extremely practical, integrating the three major functions of water quality data collection, status monitoring, and data transmission into one device. When using it, even wiring is saved, and it can automatically work as soon as it is put into the water, knowing the water quality situation at any time, which is particularly worry free.
This is an LPWAN wireless low-power IoT sensor that is particularly energy-efficient and works on wireless signals, without worrying about power consumption or wiring.
It uses filtering methods and has a particularly strong ability to resist external light interference. Even if the surrounding light fluctuates, it does not affect its normal water quality measurement.
It can adjust the measurement data according to the temperature, regardless of whether the water temperature rises or falls, the measured values are accurate and will not deviate due to changes in water temperature.
Because of these benefits, it is particularly suitable for long-term monitoring of water quality in the water, and can work stably online without falling off the chain.
It supports the standard LoRaWAN protocol and can wirelessly transmit data over long distances, sending the measured water quality directly to remote receiving devices.
Product Parameters
| Power Supply | 12/24VDC |
| Weight | 150g |
| Operating Temperature | 0~40℃ |
| Measuring Range |
0-100mg/L,0-1000mg/L(default) Ionic sensors are more susceptible to interference from other ions in the water and can easily cause membrane head failure.Please purchase with caution ! |
| Measurement Error | ±5%FS(25℃) |
| Resolution Ratio |
0-100mg/L:0.01mg/L 0-1000mg/L:0.1mg/L |
| Temperature Measurement Range |
0~50℃,Resolution Ratio:0.1℃ (When manually compensating for temperature,it is set to 25℃ by default) |
| Probe usage cycle | 3~6 months |
| Pressurization | 0.6Mpa |
| Transmitter Line Length | Default 5m (other lengths can be customized) |
| Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
| Mode | OTAA Class A/C |
| Reporting cycle | 5min (Default) |
|
Communication Protocol |
LoRaWAN, LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI:0000000000000001 DevEUI:aaaa202404150001 AppKey:00001111222233334444555566667777 MAC Version: LoRaWAN 1.0.3 |
Product Applications
1. Fast and accurate measurement: This water quality calcium ion sensor uses advanced electrochemical technology to accurately measure the content of calcium ions in water.
2. Keep track of the situation at any time: It can detect water quality in real time, analyze data, and immediately know any changes in water quality.
3. Durable and worry free: The sensor is particularly stable and can be used for a long time without any problems, without the need for constant calibration and repair.
4. You can calibrate it yourself: it will automatically adjust the data, without the need for manual calibration, which is convenient and easy.
5. Energy saving and anti-interference: The power consumption is particularly low, the internal design can prevent interference, and the measured data is always accurate.
6. Maintenance is super simple: The sensor structure is not complicated, and it is easy to remove and clean. Regular maintenance is effortless.

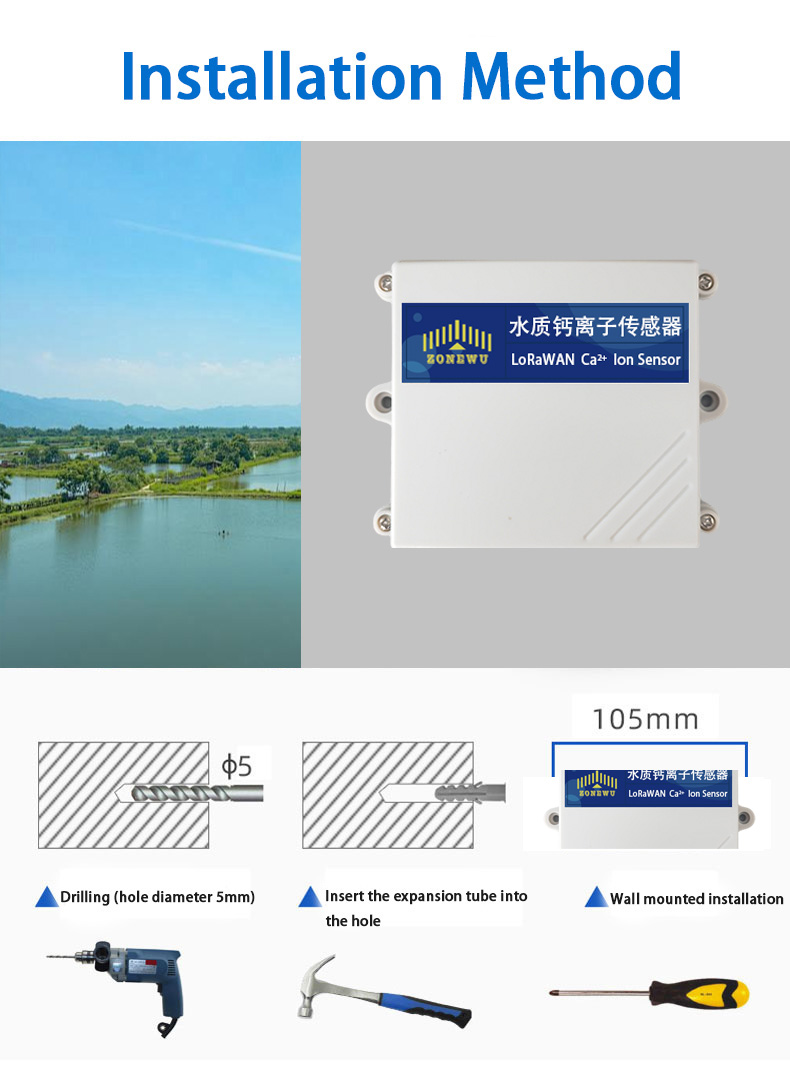

Ca2+ Ion Transmitter Size and Installation
1.Submerged installation: The lead wire of the equipment is passed through
the waterproof pipe, and the 3/4 thread on the top of the equipment is connected
with the 3/4 thread of the waterproof pipe with raw material tape.Make sure that
the top of the equipment and the equipment lines are free of water.
2. Pipe Installation: Connect to the pipe through the 3/4 thread of the device.
Detailed Images
Common knowledge of Ca2+ Ion
What is calcium ion? In what form does it exist in nature?
Calcium ion is an important cation in prokaryotes, formed by the loss of two electrons from calcium atoms and carrying two positive charges. In nature, calcium ions are widely present, mostly in minerals such as calcium carbonate (the main component of limestone and marble) and calcium sulfate (gypsum); In aqueous solution, calcium ions exist in a free state and are the key ions that make up the hardness of water; In living organisms, it binds to proteins, organic acids, or deposits in bones and teeth to maintain normal physiological functions.
What is the significance of measuring calcium ion concentration in water for water quality monitoring?
Calcium ion concentration is one of the important indicators for measuring water quality. It can reflect the hardness of water bodies, and excessive concentration can easily lead to the formation of scale, affecting the normal operation of industrial equipment and potentially impacting the survival of aquatic organisms. At the same time, changes in calcium ion concentration are closely related to the chemical reactions and biological activities of other substances in the water. Comprehensive monitoring of calcium ion concentration can help determine the water quality status and ecological health of the water body. And since the concentration of calcium ions is not only related to the composition of water quality, but also affected by factors such as environmental temperature and acidity, it is usually necessary to combine multiple water quality indicators and environmental parameters for comprehensive analysis during monitoring.
Is there generally an infinite standard for calcium ion concentration in water bodies?
Answer: Strictly speaking, there is no universal limit for calcium ion concentration, and different water bodies have different requirements for calcium ion concentration. For example, in industrial boiler water, to prevent scaling, the concentration of calcium ions needs to be strictly controlled at a low level; In drinking water, although there is no specific limit for calcium ions, it is limited by the total hardness (including calcium ions, magnesium ions, etc.) index. Generally, the total hardness of drinking water should not exceed 450mg/L (calculated as calcium carbonate).
Application Scenarios

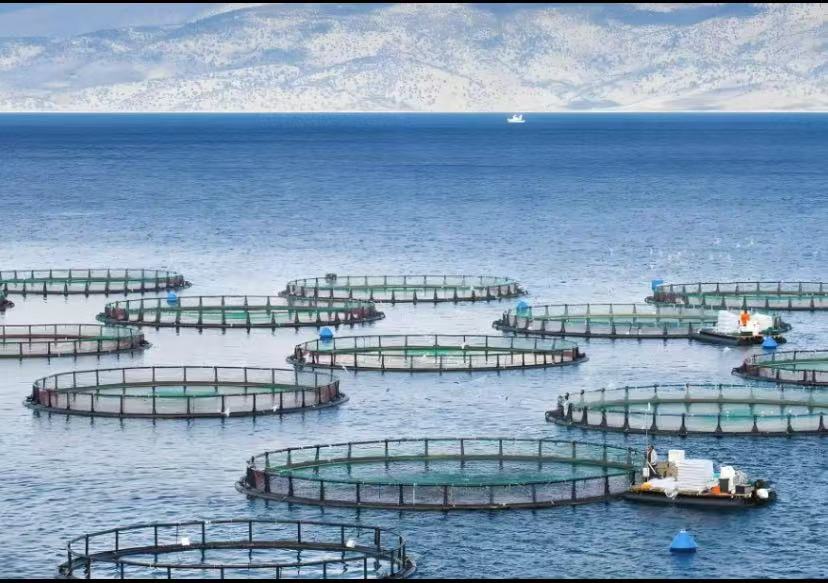

Aquaculture
Monitor the calcium ion concentration of aquaculture bodies to ensure the health of aquaculture organisms and the stability of water quality.
Seawater Monitoring
Monitoring the concentration of calcium ions in seawater is conducive to marine ecological research and the regulation of seawater aquaculture.
Industrial Wastewater
Monitoring the concentration of calcium ions in industrial wastewater helps with wastewater treatment and achieving compliance with discharge standards.
