xiamen ZONEWU The LoRaWAN Hydrogen Chloride Sensor (HCL) is a gas monitoring device that uses LoRa wireless technology. It is equipped with a high-sensitivity hydrogen chloride sensing module and temperature and humidity sensing components, which can collect real-time data on the concentration, temperature, and humidity of hydrogen chloride gas in the environment. This sensor has the characteristics of accurate detection, reliable performance, and low energy consumption. It is compatible with the standard LoRaWAN protocol and can achieve long-distance data transmission.
Product Model :
LW312-HCLPower Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
120gEnvironmental LoRaWAN Hydrogen Chloride (HCL) Sensor
xiamen ZONEWU The LoRaWAN Hydrogen Chloride (HCL) Sensor is a wireless IoT gas monitoring device that integrates data acquisition, environmental monitoring, and signal transmission functions.
xiamen ZoneWu LoRaWAN Gas Sensor HCL Sensor Features:
It can collect real-time data on hydrogen chloride concentration, temperature, and humidity in the environment, and then transmit it wirelessly to achieve comprehensive monitoring.
It uses a three electrode electrochemical gas sensing component paired with a high-performance core chip, coupled with a built-in temperature and humidity sensing device, to accurately measure the content of the target gas and the temperature and humidity data in the environment.
It has special sensitivity and strong resolution, and can detect even a slight change in concentration; Small in size, not taking up much space, and using less electricity, it is very suitable for long-term use there.
It works very reliably and can effectively block the influence of other gases in the environment, ensuring the accuracy of the measured data.
It can use the universal LoRaWAN communication method to transmit data over long distances, regardless of the size of the location or the complexity of the environment, to meet the needs of remote monitoring.
It can be used in many complex factory environments, such as chemical, metallurgical, pharmaceutical industries, and places that require detection of hydrogen chloride gas.
Technical Parameters
| Power Supply | 5~28VDC |
| Weight | 120g |
| Operating Temperature | -20℃~50℃ |
| Measuring Principle | Electrochemistry |
| Lifespan | <2 years |
| Measuring Range |
HCL:(0-10)ppm Temp:-40~+80℃ Humi:0~99.9%RH |
| Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
| Mode | OTAA Class A/C (Default: Class C) |
| Reporting cycle |
External power supply:5min (Default reporting cycle) Report after preheating for 3 minutes when powered on |
| Communication Protocol | LoRaWAN, LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI:0000000000000001 DevEUI:aaaa202404150001 AppKey:00001111222233334444555566667777 MAC Version: LoRaWAN 1.0.3 |
Product Applications
1. Especially able to detect subtle changes: This sensor is super "sensitive", even if the content of hydrogen chloride in the air is only one millionth, it can immediately detect and issue an alarm, and detect the danger of gas leakage in advance.
2. Not misled by other gases: Even if there are various gases mixed together in the environment, it only "recognizes" hydrogen chloride and will not be affected by other gases, and the measured data is true and reliable.
3. Fast update speed of messages: As soon as there is a change in the concentration of hydrogen chloride, it can immediately "keep up with the change" and transmit the latest data within seconds, making it convenient for staff to immediately know the situation and deal with problems quickly.
4. Easy to use and reliable: This sensor can be used for a long time without any errors, regardless of whether it is hot, cold, humid or dry, it does not greatly affect the measurement results. It can work stably in various environments without frequent debugging and repair.
5. The data is clear at a glance: the signal it measures is "linked" to the actual concentration of hydrogen chloride, and the higher the concentration, the stronger the signal. Data processing is particularly simple. With just a glance at the signal values, one can determine the gas concentration, making it convenient for data analysis.
6. Adequate protection is not afraid of corrosion: Considering that hydrogen chloride is toxic and corrosive, this sensor has been designed with "anti damage" features. The shell is tightly sealed and not breathable, and it is also very corrosion-resistant, not easily damaged by gas, and will not cause gas leakage due to faults, making it more reassuring to use.

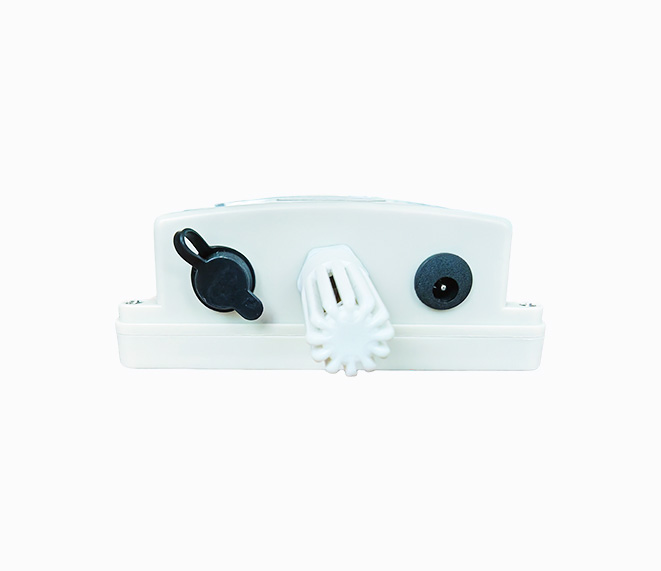

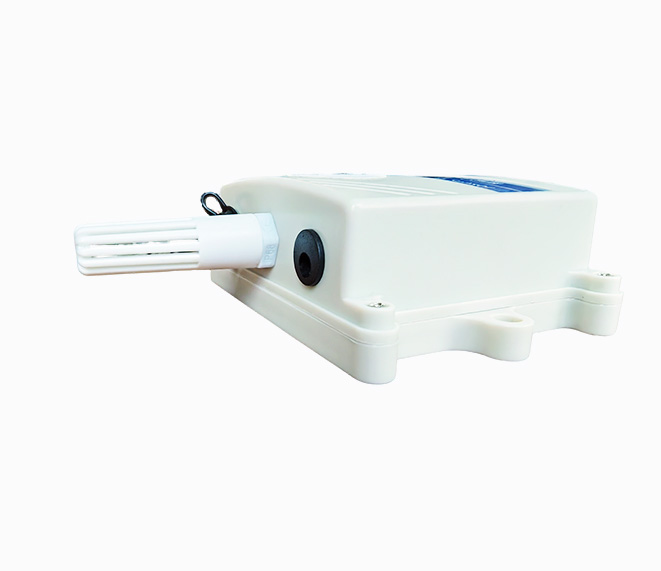

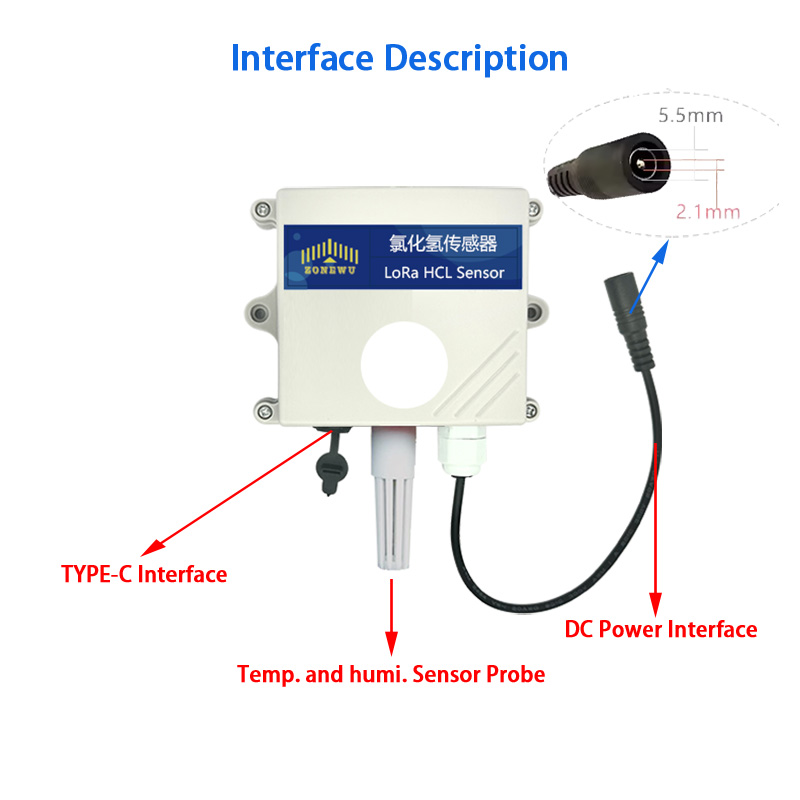

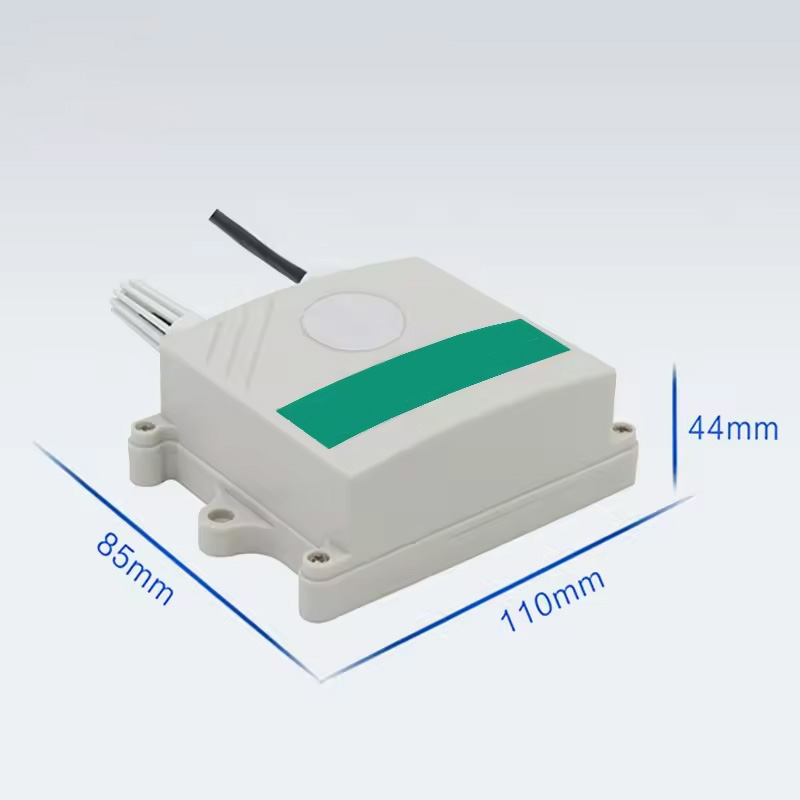

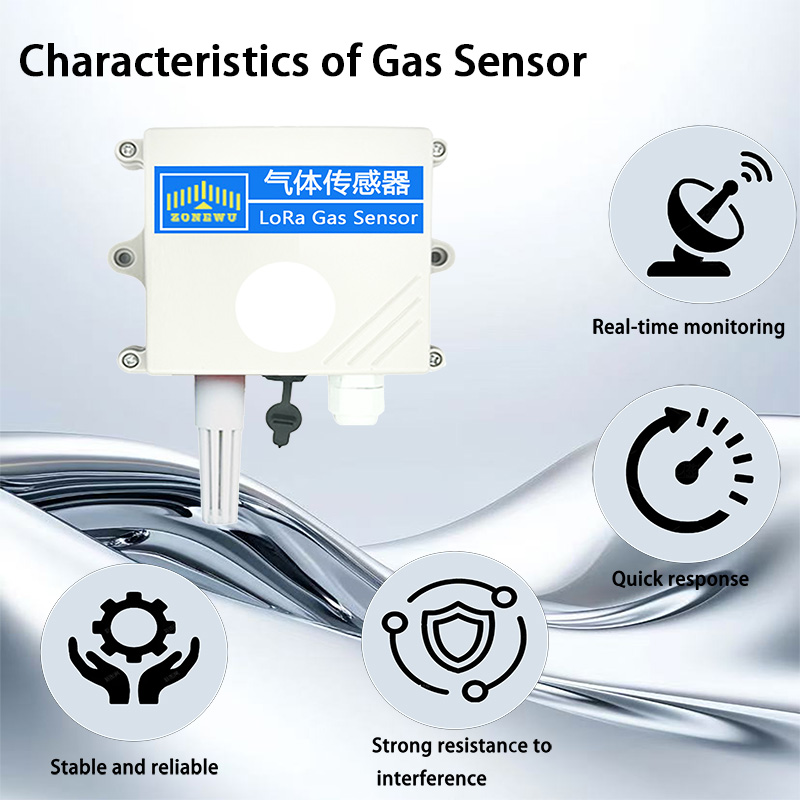

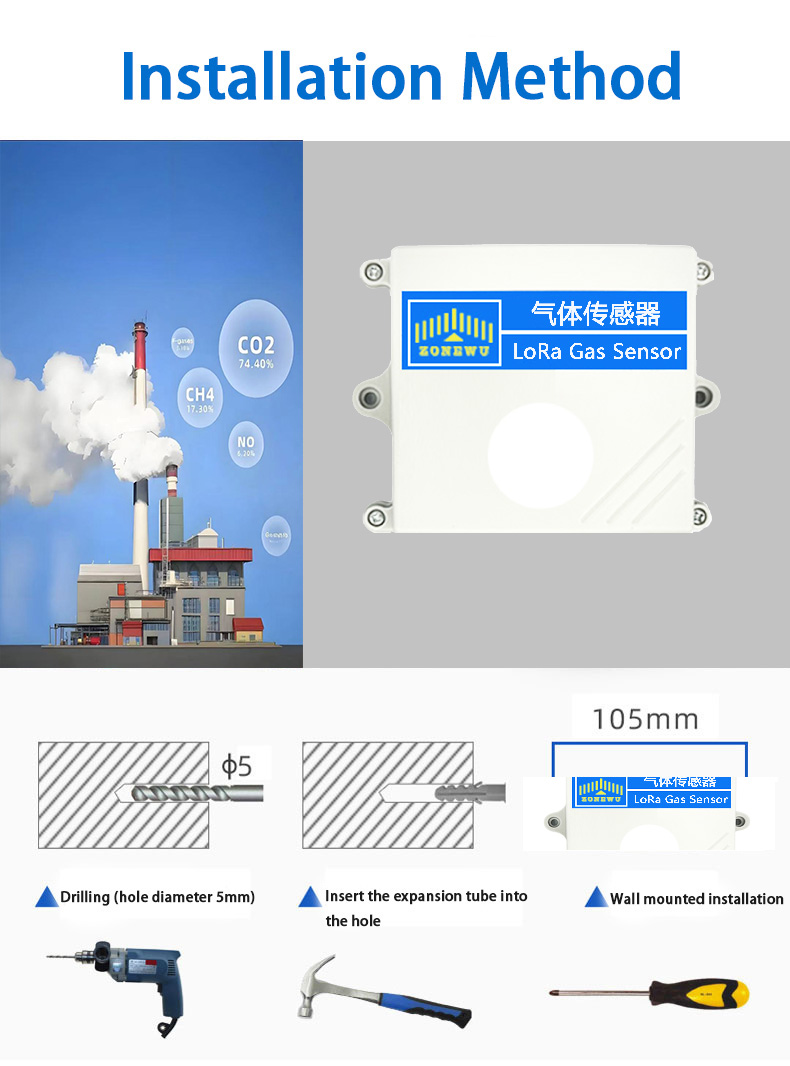

Detailed Images
Common knowledge of HCL
What is hydrogen chloride gas
Hydrogen chloride (HCl) is a colorless gas with a strong pungent odor. It is easily soluble in water at room temperature and forms a white mist when exposed to humid air. It usually comes from industrial production (such as chemical, metallurgical), waste combustion and other scenarios, and is corrosive and toxic.
What are the hazards of hydrogen chloride to the human body
Inhaling low concentrations of hydrogen chloride can irritate the respiratory tract, causing coughing and sore throat; High concentrations may cause pulmonary edema, difficulty breathing, and even burn the nasal cavity and lung mucosa. Long term exposure may also damage teeth and skin, and is a toxic gas that requires strict control.
How to detect the concentration of hydrogen chloride in the environment
Three electrode electrochemical sensors or LoRaWAN wireless sensors are commonly used for monitoring. This type of device can capture the real-time concentration of hydrogen chloride in the air, and is paired with temperature and humidity sensors to synchronously monitor environmental parameters. Once the concentration exceeds the standard, an alarm will be issued, making it suitable for use in factories, laboratories, and other scenarios.
What is the safe concentration of hydrogen chloride in the air
The safe upper limit of hydrogen chloride concentration in the working environment is generally set at 5ppm (parts per million). When the concentration exceeds this value, immediate ventilation or protective measures need to be taken to avoid human exposure to hazardous environments.
Application Scenarios

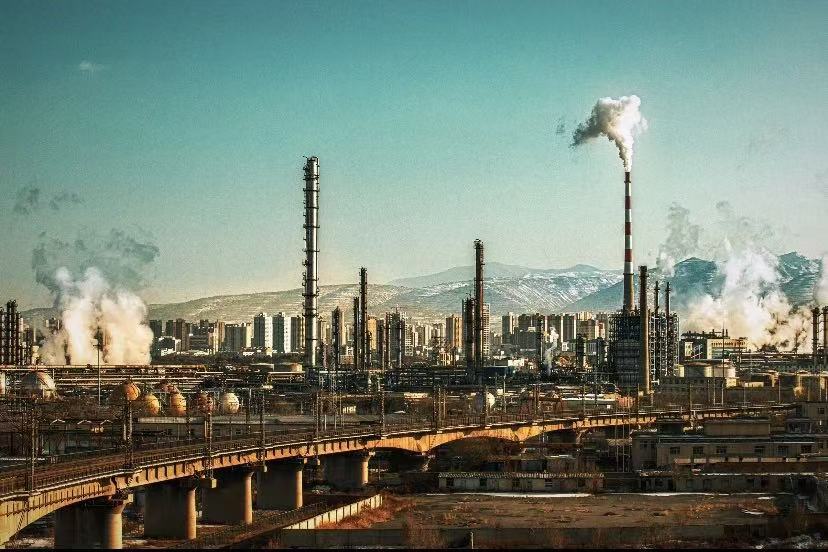

Industrial production
Waste gas emission monitoring: Conduct real-time monitoring of industrial waste gas emissions to ensure that waste gases meet emission standards and reduce pollution to the environment.
Environmental inspection
Air quality monitoring helps people understand air quality and protect the environment and health by detecting harmful gases such as sulfur dioxide.
Safety protection
In coal mines and tunnels, gas sensors detect toxic and harmful gases such as methane and warn against accidents.
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples. After ordering in bulk, we will deduct the sample fee from the second order.
Why Choose ZONEWU
xiamen ZONEWU The LoRaWAN Oxygen (O2) sensor is a wireless gas detection device using LoRa wireless technology. It contains a very powerful carbon monoxide detection device, and also comes with sensors that can measure temperature and humidity. With it, you can know at any time how high the carbon monoxide concentration is around you, as well as the temperature and humidity at that time. The data measured by this sensor is very accurate, it is not easy to fail, and it is especially energy-saving. It uses the standard LoRaWAN communication protocol, and the signal can transmit very far, even if it is far away, it can still send data.
Details
xiamen ZONEWU The LoRaWAN Sulfur Dioxide (SO2) Sensor is a very versatile wireless device that can directly collect data on sulfur dioxide, monitor the situation of sulfur dioxide in the surrounding environment in real time, and send the measured data out. It has many advantages: it is particularly sensitive to detecting sulfur dioxide and can react quickly when there is a change; The measurement results will not be affected by changes in temperature and humidity; The performance is very stable, and it is not easy to have problems; In addition, there will be no interference during the measurement, and the data is very reliable. It uses the LoRaWAN communication method, which can transmit data far away, even if it is far away, it will not delay the transmission.
Details
xiamen ZONEWU This LoRaWAN Nitric Oxide (CO) Sensor is a gas monitoring device based on LoRa wireless technology. Its function is to measure the concentration of carbon monoxide, temperature and humidity in the environment in real time; The core configuration is the built-in high-performance carbon monoxide sensor and temperature and humidity sensor. This equipment has obvious advantages, with precise measurement, stable performance, and low energy consumption, making it suitable for long-term use. In terms of data transmission, it follows the standard LoRaWAN protocol, does not require wiring, and can realize long-distance data transmission.
Details

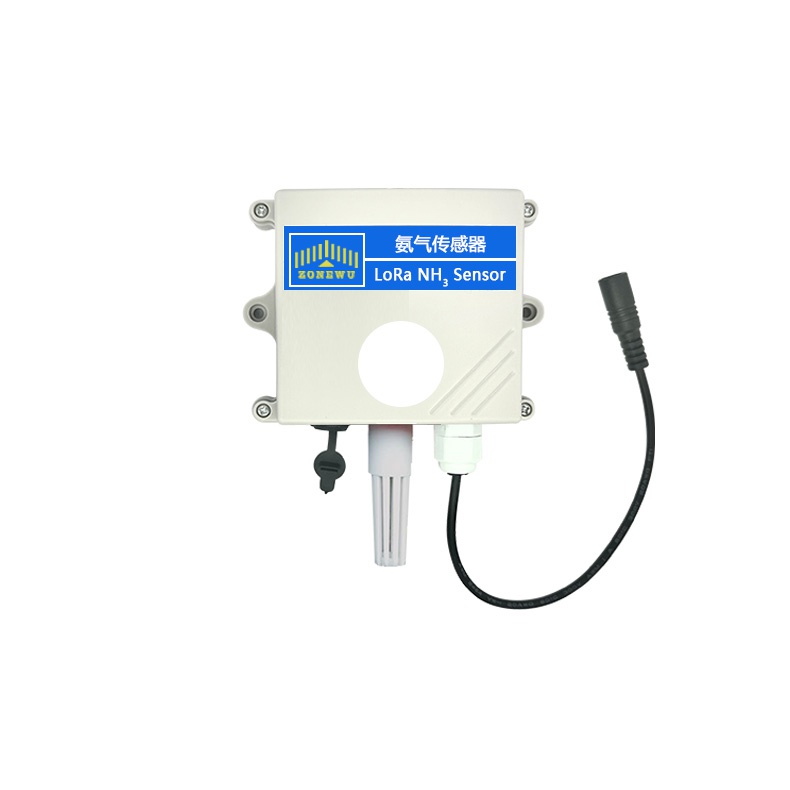

xiamen ZoneWu LoRaWAN NH3 sensor is an innovative IoT sensing device built with LoRa wireless technology. Its integrated ammonia, temperature and humidity sensors can measure the ammonia concentration, temperature and humidity in the environment in real time, with the characteristics of high sensitivity, high precision and high stability.
Details

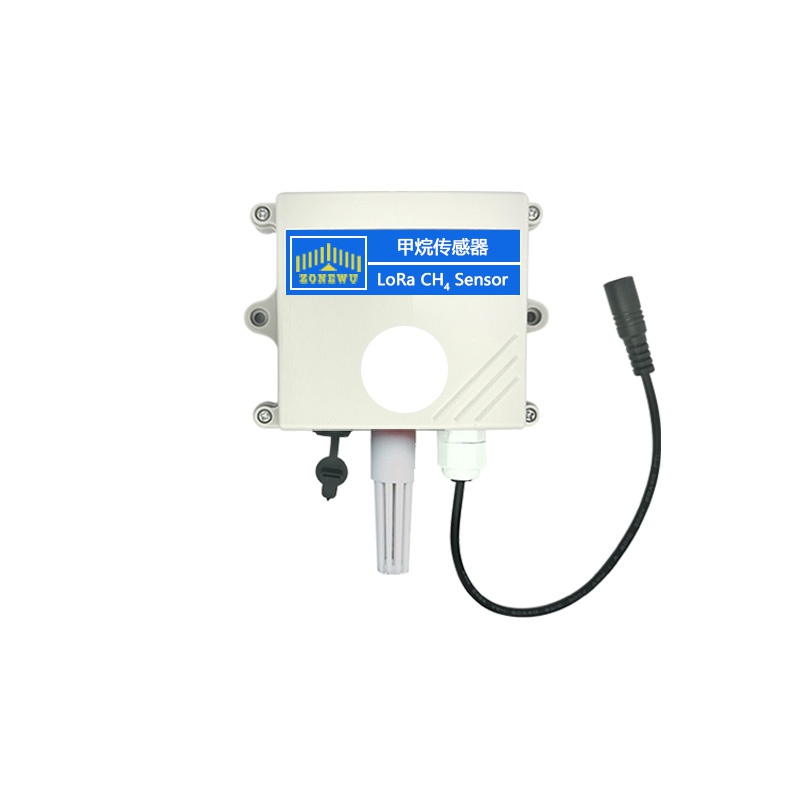

xiamen ZoneWu LoRaWAN Wireless CH4 Sensor has significant advantages! It has data acquisition, monitoring and transmission functions, and the high-sensitivity methane sensor built-in responds quickly, has stable performance, is durable, can resist water vapor interference, and is non-toxic and safe. Its catalytic combustion sensor supports replacement, is suitable for dust environment, and can realize long-distance communication based on LoRa technology.
Details

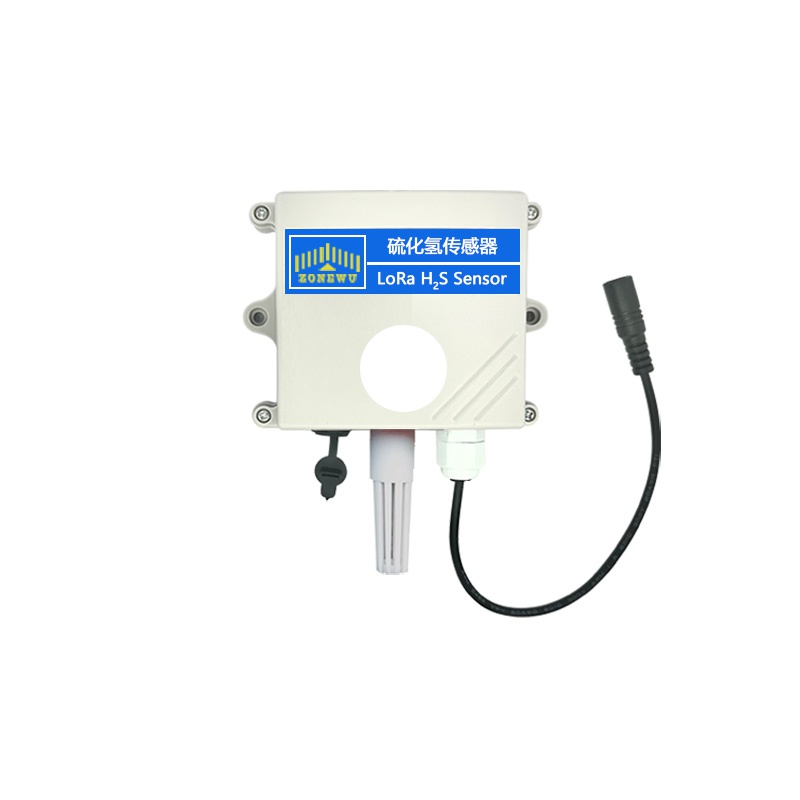

xiamen ZoneWu LoRaWAN H2S gas sensor is a powerful data acquisition device that can measure the concentration of hydrogen sulfide, temperature, and humidity in the environment in real time and with high precision through the built-in hydrogen sulfide, temperature and humidity sensors. The sensor has high sensitivity, high precision, and high stability, and can realize long-distance data communication based on the standard LoRaWAN protocol.
Details

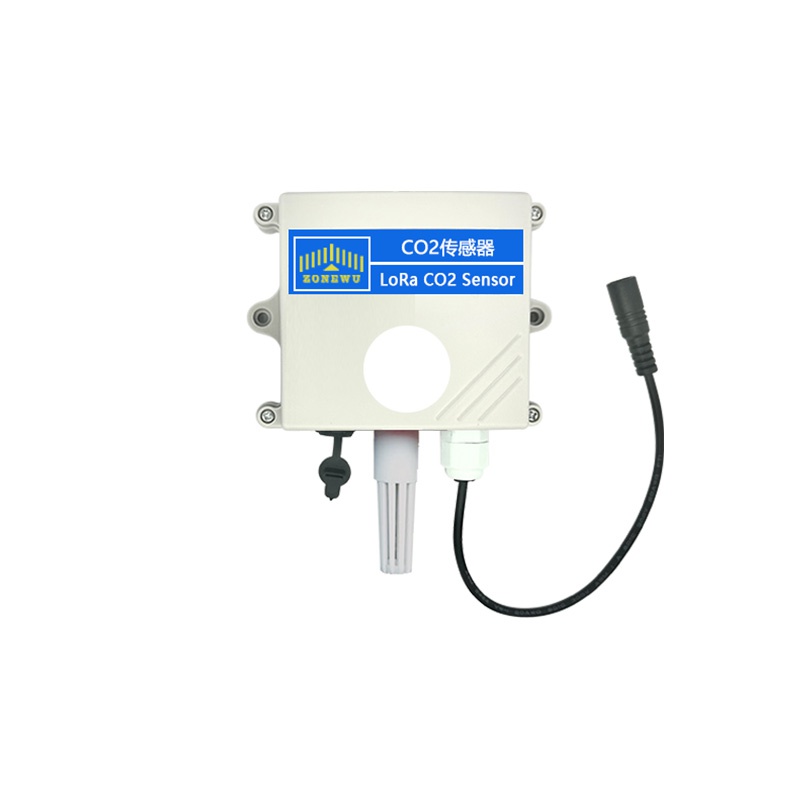

xiamen ZoneWu LoRaWAN CO2 monitor is a new type of wireless gas sensing device developed based on LoRaTM spread spectrum modulation technology. Its built-in carbon dioxide and temperature and humidity sensors can accurately measure the carbon dioxide concentration, temperature and humidity data in the environment in real time. The monitoring instrument has the characteristics of high sensitivity, high resolution and fast response. It is not only durable and supports temperature compensation, but also has the significant advantage of stable output.
Details

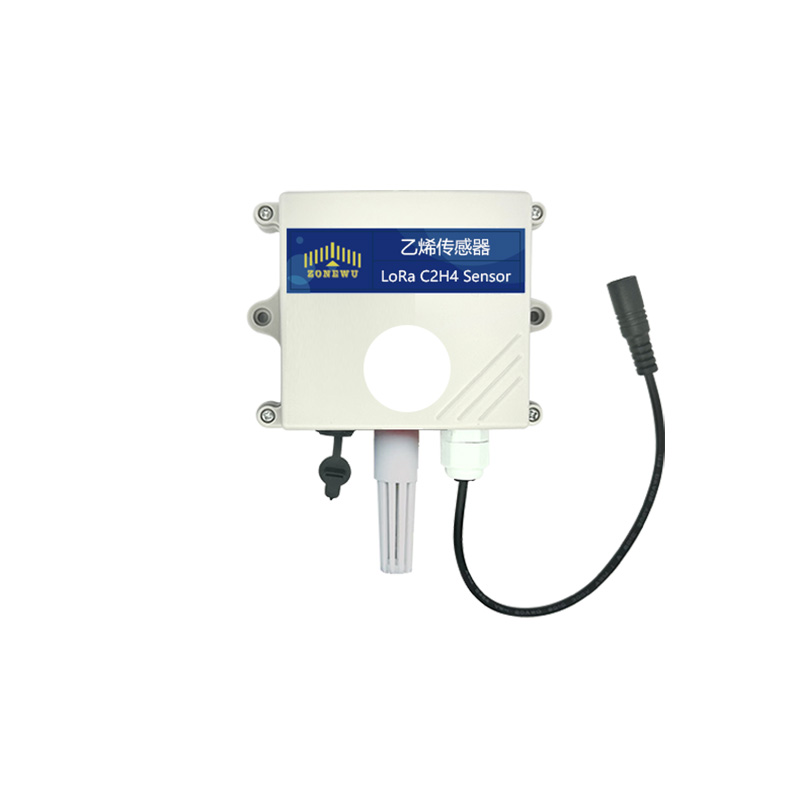

xiamen ZoneWu LoRa wireless C2H4 sensor is a wireless IoT device that has data acquisition, monitoring, and transmission functions. It is equipped with ethylene, temperature and humidity sensors, which can measure the ethylene concentration, temperature and humidity in the environment in real time. With high-performance sensors and microprocessors, it can achieve precise detection, with the advantages of stable performance and low power consumption. The device follows the standard LoRaWAN protocol, supports remote communication, and is suitable for environmental monitoring of ethylene gas in the Internet of Things scenario.
