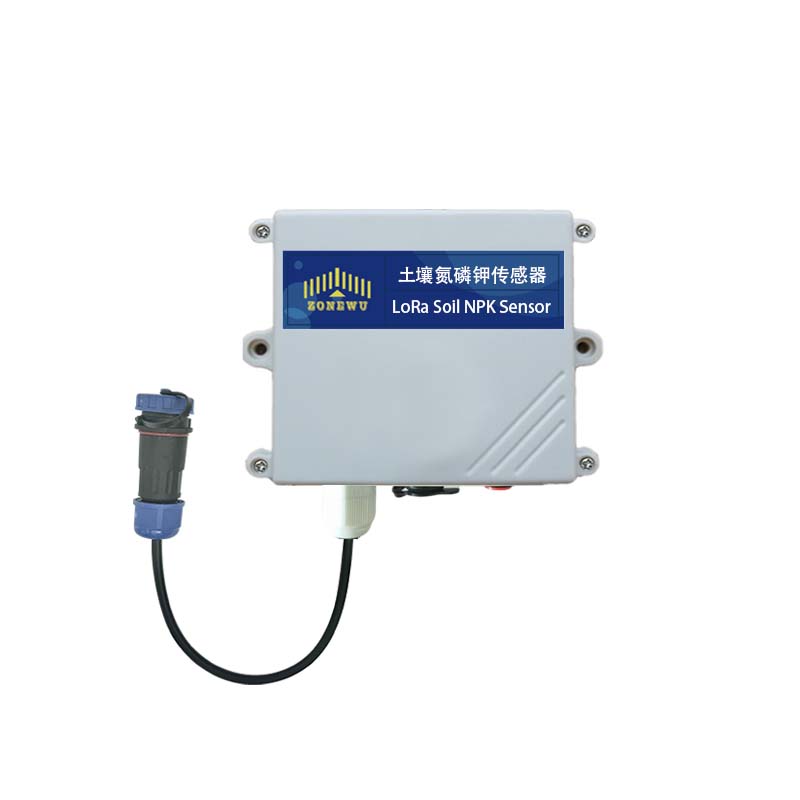

Custom New Wireless LoRa Soil NPK Sensor

Custom New Wireless LoRa Soil NPK Sensor

xiamen ZoneWu LoRa Soil Nitrogen, Phosphorus, and Potassium (NPK) Sensor is an innovative wireless sensing device, which has the functions of collection, monitoring and transmission, and can real-time accurately monitor the content of nitrogen, phosphorus and potassium in the soil, with high measurement accuracy. The LoRWAN collector is connected to the sensor via an aviation connector, and the connection operation is quick and convenient. It follows the standard LoRaWAN protocol, enabling long-distance data transmission.

  • Product Model :

    LW503-NPK
  • Power Supply Mode :

    Battery or External DC
  • Frequency :

    CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4
  • MAC Version :

    LoRaWAN 1.0.3
  • Mode :

    OTAA Class A/C
  • Weight :

    120g

Custom New Wireless LoRa Soil NPK Sensor



xiamen ZoneWu LoRa soil nitrogen phosphorus potassium (NPK) sensor is an integrated wireless IoT sensing device for precision agriculture. It can go deep into the soil layer and accurately detect the nitrogen, phosphorus and potassium nutrients in the soil in real time, effectively controlling the measurement deviation. With LoRa remote low-power communication technology, data can be transmitted stably even in remote farmland, and the battery life is long. Users can keep track of soil nutrient dynamics at any time, scientifically plan fertilization, reduce production costs, improve crop yield and quality, and promote the intelligent and efficient development of agriculture.

Technical Parameters

Power Supply

5-28 VDC

Weight

150g

Operating Emperature

0℃~55℃

Measuring Range

0-1999 mg/kg(mg/L)

0-2999 mg/kg(mg/L)

Measurement Error

≤5%

Resolution Ratio

1 mg/kg(mg/L)

Sensor External Dimensions

45*15*123mm

Steel Needle Material

Stainless Steel

Sealing Material

Black flame retardant epoxy resin

Transmitter

Line length

Default 2m (other lengths can be customized)

Frequency

CN470/IN865/EU868/RU864/US915/AU915/

KR920/AS923-1&2&3&4

Mode

OTAA  Class C

Reporting cycle

5min(Default )

Communication Protocol

 LoRaWAN

Equipment information

(Reference)

AppEUI:0000000000000001

DevEUI:aaaa202404150001

AppKey:00001111222233334444555566667777

MAC Version:LoRaWAN 1.0.3

Detailed Images



Why Choose ZONEWU

  • Professional IoT Sensor Manufacturer
    Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
  • High Quality and Reliability
    Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
  • Wide Range of Applications
    Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
  • Advanced Technology
    Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
  • Customized Solutions
    Provides tailored products and OEM/ODM services to meet diverse application needs.
